FLOWMAN

ADVANCED PUMP TECHNOLOGIES

Edition 04 : 01 January, 2002

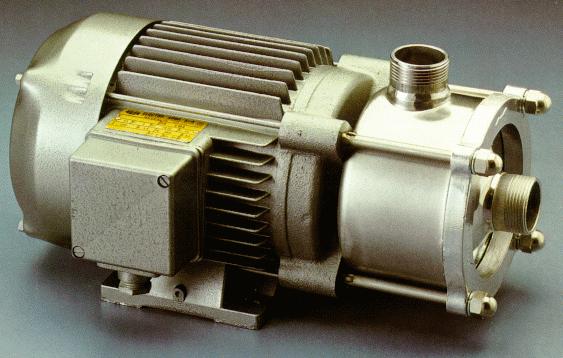

Photograph of the Circulator pumps

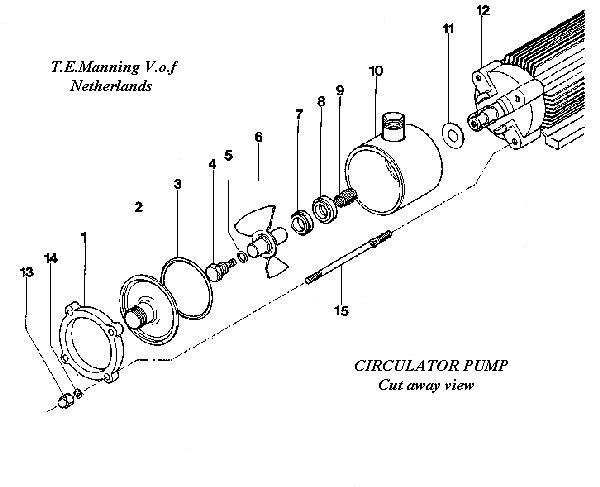

Drawing of the Circulator pumps

DRAWING

Part	Description	Material
01	Flange	inox aisi 3o4
02	Pump cover	Inox aisi 304 or 316
03	Body seal ring	Buna or viton(R)
04	Propeller screw	Inox aisi 304 or 316
05	Screw o-ring	Buna or viton(R)
06	Propeller	Inox aisi 304 or 316
07/08	Seal	Graphite, ceramic, with buna or viton(R) or teflon(R)
09	Star ring	Steel
10	Pump body	Inox aisi 304 or 316
11	Compensation ring	Stainless steel aisi 304
12	(Motor)
13	Flange lock nuts)	Brass
14	Washers	Steel
15	Tie-rods	Steel

(Viton(R) and Teflon(R) are registered trademarks of DuPont Dow Elastomers

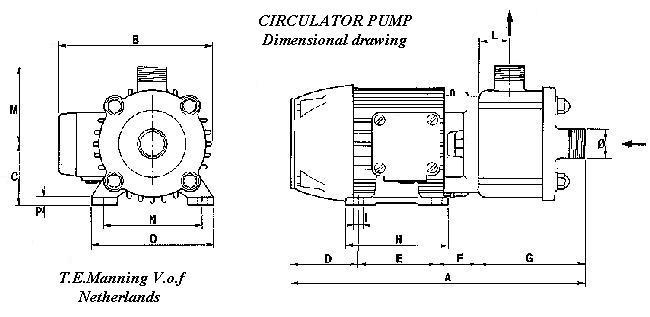

Dimensional drawing of the Circulator pumps

DIMENSIONAL DRAWING

Model	HP	Rpm	A	B	C	D	E	F	G	H	I	L	M	N	O	P	Diam
Circulator-110	0.5	1400	331	188	72	75	90	50	116	101	8	28	90	112	137	10	1"
Circulator-110	0.75	2800	331	188	72	75	90	50	116	101	8	28	90	112	137	10	1"
Circulator-130	0.75	1400	363	208	80	87	100	55	121	122	10	37	100	125	155	10	1 1/4"
	2	2800	373	225	90	90	100	62	121	125	10	37	100	140	175	12	1 1/4"
	2.5	2800	398	225	90	90	125	62	121	150	10	37	100	140	172	13	1 1/4"
Circulator-150	2.5	1400	440	255	100	97	140	73	130	170	12	43	112	160	198	13	1 1/2"
	4.5	2800	473	280	112	108	140	95	130	172	13	43	112	190	227	17	1 1/2"
	6	2800	475	280	112	110	140	95	130	172	13	43	112	190	227	17	1 1/2"
