Edition 03 : 01 January, 2002

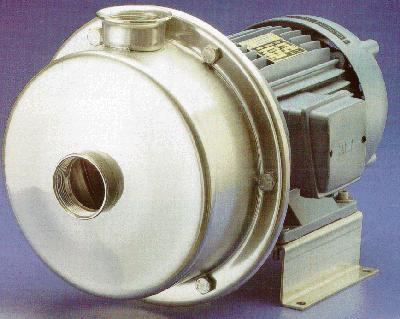

Photograph of the HIGH CENTS pumps

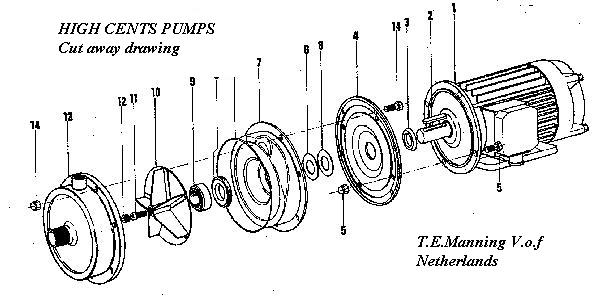

Drawing of the HIGH CENT pumps

DRAWING

PartDescriptionMaterial
01Motor
02Shaft keySteel
03Shaft seal ring
04BackplateInox 316
05ScrewsStainless steel aisi 304
06Distancing ringInox 316
07DiffuserStainless steel aisi 316
08Fixed part of sealStainless steel aisi 316, ceramic
09Rotating part of sealStainless steel, graphite, viton(R) or teflon(R)
10ImpellerStainless steel aisi 316
11Impeller set screwStainless steel aisi 316
12Impeller lockStainless steel aisi 316
13Pump bodyAisi 316
14Lock nutStainless steel aisi 304
15Body "O" ringViton(R)

(Viton(R) and Teflon(R) are registered trademarks of DuPont Dow Elastomers)

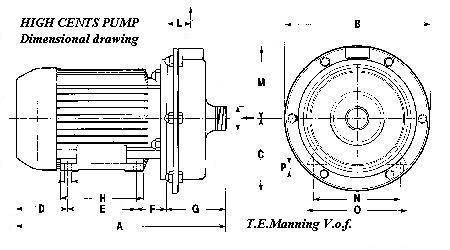

Dimensional drawing (in millimeters) of HIGH CENTS pumps

DIMENSIONAL DRAWING

HP MotorABCDEFGHILMNOP
350331015511014063190166117914716020013
450331015511014063190166117914716020013
5.550331015511014063190166119115016020013
7.550331015511014063190166119616516020013
