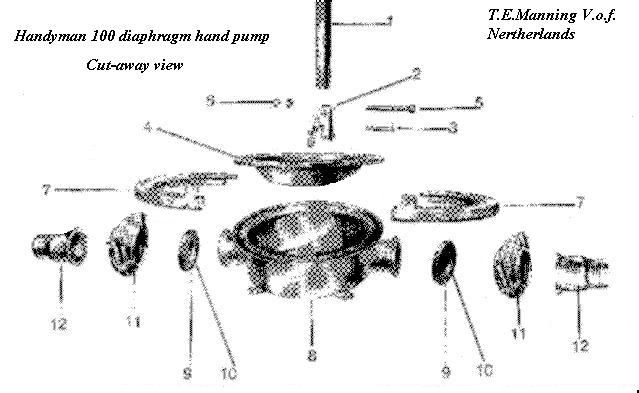

| Part-code | Ref. | Description | Pieces | Materials | |
|---|---|---|---|---|---|
| 3150 | 01 | Handle | 1 | Galvanised iron | |
| 3151 | 02 | Lever | 1 | Stainless steel aisi 304 | |
| 3152 | 03 | Pivot | 1 | Galvanised iron | |
| 3153 | 04 | Diaphragm | 1 | Neoprene | |
| 3154 | 04 | Diaphragm | 1 | Perbunan elastomer | |
| 3156 | 05 | Long screw | 1 | Stainless steel aisi 304 | |
| 3157 | 06 | Nuts | 2 | Bronze | |
| 3158 | 07 | Split clamp band | 1 | Stainless steel aisi 304 | |
| 3162 | 08 | Pump body | 1 | Stainless steel aisi 304 | |
| 3165 | 09 | Flapper valve | 2 | Neoprene | |
| 3168 | 09 | Flapper valve | 2 | Perbunan elastomer/TD> | |
| 3170 | 10 | Valve supports | 2 | Stainless steel aisi 304 | |
| 3172 | 11 | Clamps male part | 2 | Stainless steel aisi 304 | |
| 3172F | 11 | Clamps female part | 1 | Stainless steel aisi 304 | |
| 3172N | 11 | Wing nuts for clamps | 4 | Bronze | |
| 3174 | 12 | Pipe couplings 40mm nylon | 2 | Nylon | |
| 3174S | 12 | Pipe couplings 40mm steel | 2 | Stainless steel 304 | |
| 3174T | 12 | Pipe couplings 40mm male gas | 2 | Stainless steel aisi 304 | |
| 3175 | 12 | Pipe couplings 50mm nylon | 2 | Nylon | |
| 3175S | 12 | Pipe couplings 50mm steel | 2 | Stainless steel 304 | |
| 3175T | 12 | Pipe couplings 50mm male gas | 2 | Stainless steel aisi 304 | |
| 3176 | 12 | Teflon rings for couplings | 2 | Teflon | |
| 3177 | 13 | Trolley mount | 1 | Galvanised iron | |
| 317W | 13 | Wheel set for trolley mount | 2 |
