T.E.(Terry) Manning Schoener 50 1771 ED Wieringerwerf The Netherlands Tel/fax 0031-227-604128 Homepage : http://www.flowman.nl E-mail:pumps@flowman.nl

FLOWMAN

ADVANCED PUMP TECHNOLOGIES

Edition 02 : 01 January, 2002

Description of the Holdfast suction cups

A range of suction cups (grips) or suction lifters with flexible stainless steel inserts, fitted with a vacuum pump and incorporating a safety device, for manual use with weights up to 150kg. The Holdfast suction cups feature metal structures, the superfilter filter groups, and a mini-skirt enabling the lifters to be used on slightly rounded surfaces.

Currently available in three models:
Holdfast 70 with capacity 70kg. Break-off point 90kg.
Holdfast 150 with capacity 150kg. Break-off point 180kg.
Holdfast 150 with vacuum guage with capacity 150kg. Break-off point 180kg.

Applications

Holdfast are typically used in the glass industry for use with sheet glass, in the vehicle maintenance industry for the fitting of windscreens, in the marble industry for lifting and placing polished marble, in industries handling sheet metal and sheet plastics, in the house-removals industry for lifting and transporting items (refigerators, ovens etc) with smooth surfaces.

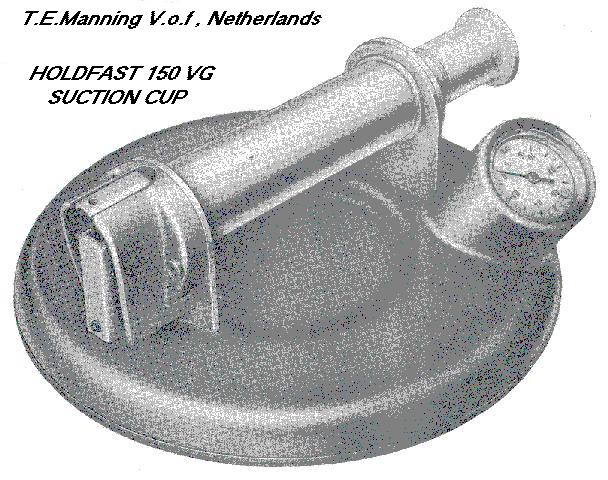

Photograph of the Holdfast suction cups

PHOTO of Holdfast 150 with vacuum guage.

THE SUPERFILTER GROUP

The main problem encountered with suction lifters of the Holdfast type in the past has always been the possibility of dirt or dust entering the bearing area and causing loss of vacuum.
(a)The operator could not know that the bearing was dirty until the lifter actually failed.
(b)As it was necessary to dismantle the head of the filter to get at the bearing area, no systematic preventive maintenance was carried out.
(c)Because the cleaning operation was relatively complicated, lifters were commonly returned to the supplier for maintenance, with corresponding expense and loss of use of the lifter.

The introduction of the Superfilter group has elminated these characteristic problems at origin.
(a)Systematic and regular preventive checks are possible. How to carry out these checks is set out in the section "Use and maintenance of the Holdfast lifters" below. Checking and/or cleaning requires a maximum of five minutes and can be carried out entirely on site.
(b)A cigarette type filter has been used to avoid all difficulty in supply on site of spare filters
(c)The distributor is free from most of the maintenance he has been called upon to carry out up to now.

THE MNI-SKIRT

The mini-skirt is a wide flexible ring supplied with Holdfast Superfilter lifters as a standard accessory. It is of particular help in the initial positioning of the lifter (immediate pressure adherence is obtained even on vertical surfaces) and in the use of the lifter on slightly curved surfaces (e.g.motor vehicle windows) and some types of uneven glass surfaces. It is fitted into the base of the lifter in place of the thin narrow ring inserted in the rubber base on delivery of the lifter.

THE VACUUM GUAGE

The Holdfast 150 can also be supplied with a vacuum guage, which offers an extra safety measure (visual reading of the vacuum level shown by the guage) in addition to the standard safety device, a red line on the pump piston which when it appears indicates to the user that the lifter is losing vacuum grip and that the object being lifted must be put to rest and the vacuum pump recharged.

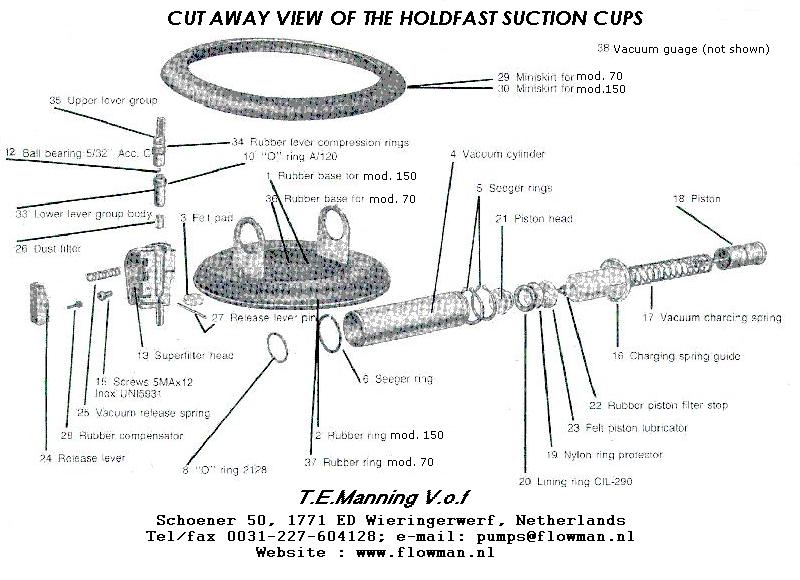

Drawing of the Holdfast suction cups

DRAWING

LIST OF PARTS AND PRICES IN EUROS

Holdfast 150 standard in carry box Eur 088
Holdfast 150V with vacuum gauge in carry box Eur 094
Holdfast 70 in carry box Eur 058
Complete piston groups 16,17,18,19,20,21,22,23 for Holdfast 150 Eur 021
Complete piston groups 16,17,18,19,20,21,22,23 for Holdfast 70 Eur 021
Complete superfilter sets 10,26,33,34,35,12 Eur 009
Complete filter head sets 13,15,24,25,27,28 Eur 012

Parts lists

DESCRIPTION	Holdfast 150		Holdfast 70
	Part	Eur	Part	Eur
Rubber base	01	088	36	052
Rubber ring	02	002	37	002
Felt pad	03	001	03	001
Vacuum cylinder	04	016	04	015
Seeger rings	05	001	05	001
Seeger ring	06	001	06	001
"O"ring 2128	08	001	08	001
"O"ring A/120	10	001	10	001
Ball bearing	12	001	12	001
Superfilter head	13	006	13	006
Screws inox 5MAx12	15	001	15	001
Charging guide	16	004	16	004
Vacuum charging spring	17	002	17	002
Piston	18	008	18	008
Plastic ring protector	19	001	19	001
Lining ring CIL 290	20	002	20	003
Piston head	21	003	21	003
Rubber filter stop	22	002	22	002
Felt lubricator	23	002	23	002
Release lever	24	003	24	003
Vacuum release spring	25	003	25	002
Dust filter	26	001	26	001
Release lever pin	27	001	27	001
Rubber compensator	28	001	28	001
Mini skirt	29	018	30	017
Plastic box	31	017	31	017
Lower lever body group	33	002	33	002
Rubber compression ring	34	001	34	001
Upper lever group	35	004	35	004
Vacuum guage for 150	38	015

Weights and volumes

Holdfast 150 and 150 with vacuum guage

Packed individually in a plastic carry box.
Net weight of one lifter : 1.5kg
Weight of lifter in carry box : 1.9kg
Group packing in cartons 75cm x 36cm x 22cm each containing 5 pieces.
Weight of carton with 5 pieces: 10.5kg
Volume of carton with 5 pieces: 0.06m3
Pieces to 1 cubic meter : about 80
Number of cartons to 1m3: 16

Holdfast 70

Packed individually in a plastic carry box.
Net weight of one lifter : 1kg
Weight of lifter in carry box : 1.4kg
Group packing in cartons 75cm x 36cm x 22cm each containing 5 pieces.
Weight of carton with 5 pieces: 8kg
Volume of carton with 5 pieces: 0.06m3
Pieces to 1 cubic meter : about 80
Number of cartons to 1m3: 16

Lead time

Allow 21 working days for despatch of goods.
WARNING!! The factory is closed throughout August and the Christmas/New Year period.

Forwarding agent

Please be sure to nominate your carrier and, where applicable, your customs agent, and detail your routing instructions.

Insurance and passage of liability

Liability passes to the buyer at the moment of loading on board truck at the factory or warehouse in the Netherlands as the case may be.

Please advise whether insurance is to be arranged.

Discount structures for any one order or firm series of orders

000-003 units: net
004-010 units: 05%
011-025 units: 10%
026-050 units: 15%
051-100 units: 20%
101-500 units: 22,5%
Over 500 units:25%

Payment

Payments must be adequately covered by way of irrevocable letter of credit issued by a leading bank or made in advance. Within the European Union, payments against documents will be accepted for orders up to a value of Eur 10.000. Subject always to bank references, orders for up to Euro 5000, can be delivered within the European Union can be delivered against payment at 30 days with 2% discount for payment within 10 days of the date of the invoice.

INSTRUCTIONS FOR USE AND MAINTENANCE

Preliminary notes

1)The surface of the object to be lifted must be clean and dry and the surface of the lifter should be clean.
2)The rings on the Holdfast Superfilter base must be free from cuts, damage, or dirt. The felt ring under the base should be in place.
3)In presence of very low (below zero degrees centigrade) temperatures, the rubber of the base may become more rigid and the capacity of the Holdfast Superfilter unit may be affected.
4)Make sure that the piston (pump), after having been pumped several times so as to remain in its extreme position inside the cylinder, remains there.

Respect for your Holdfast Superfilter unit

Your Holdfast Superfilter unit is a precision instrument.
Treat it with respect and it will give you years of trouble-free service.
DO NOT DROP IT OR THROW IT AROUND.
KEEP IT CLEAN
REPLACE IT IN ITS CARRY BOX AFTER USE.
CHECK CLEANLINESS OF FILTER, BEARING AND BEARING SEAT REGULARLY

How to use your Holdfast Superfilter

1)Push your Holdfast Superfilter against the clean and dry surface to be lifted so that an initial adherence is obtained. The mini-skirt will often be found of particular help in this respect.
2)Pump until the piston remains in its full inside position, to create vacuum.
3)Thumb pressure on the release catch allows air to enter and the Holdfast can then be detached from the surface again.
4)Important! The pump and/or release catch must not be actioned while handling is under way.

Should the pistom come out more or less rapidly this means there is loss of vacuum. Put the object being lifted in a rest position immediately. ATTENTION! THE RED LINE ON THE PISTON, WHEN VISIBLE, MEANS DANGER!!

Loss of vacuum can be caused by:

1) Unreasonably long periods in a holding position without further creation of vacuum. Never leave your Holdfast Superfilter in position overnight.
2) Dirty or rough surfaces. Clean and dry dirty surfaces.
3) The rings on the Holdfast base are cut or damaged. Replace the base.
4) Dirty bearings and/or bearing seat. Lift the metal lever in the upper part of the Holdfast handle and withdraw the small cylinder to which it is attached. Unscrew the two parts of the cylinder. Do this carefully! DO NOT LOSE THE SMALL BEARING! Remove the bearing and clean the bearing and the bearing seat. Replace the bearing in its seat and then screw the two parts of the cylinder back together again. Check the filter, and if necessary, change it. The filter can be substituted by a cigarette filter if an original replacement filter is not available on site. Re-insert the small cylinder in its place in the Holdfast handle, making sure the cylinder is pushed right down into position. Close the lever, ensuring that it fits correctly into its housing in the Holdfast handle. Test pump against a suitable surface and ensure that the piston does not come out after pumping.
5) Dry felt on pump piston. Apply a small quantity of acid-free lubrificant.
6) The rubber piston ring can become temporarily deformed if the Holdfast has been laid up for a long time without use. Usually the ring will reach its normal degree of flexibility after a few minutes' pumping.
7) Rarely, it may be necessary to replace the rubber "O" ring on the piston or in the release catch. In this case the Holdfast should be returned to your supplier for maintenance or a complete piston or release group purchased.
8) Holdfast Superfilter suction cups are designed for use by hand. Use with cranes etc can be dangerous because of incorrect weight distribution and sudden application of excess force.
