IMPRESS DIE-PRESSED STAINLESS STEEL BALL VALVES

Presentation

A range of low pressure full bore die-pressed stainless steel three piece ball valves. The ball valves are available in any combination female-female, female-male, female-weld, male-male, male-weld, or weld-weld for general use wherever the use of stainless steel equipment is recommended. The ball valves can also be supplied flanged on one or both sides. A kit for the adaptation of the valves for use with actuators is also available on request.

Applications

From depuration plants to machinery in the textiles, galvanics, light chemicals, petrochemicals, wine and alimentary industries where strictly sanitary valves are not required, tanker trucks, tanks and cisterns and more generally where stainless steel equipment is for quality reasons preferred to other materials. The ball valves can be used with all liquids compatible with both the type of stainless steel (Aisi 304 or 316) used and with the teflon seals.

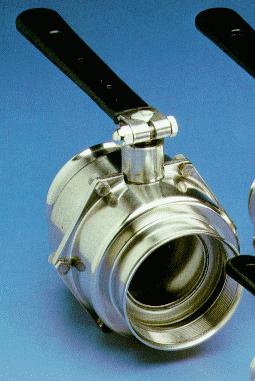

Photograph

Features

-Choice from either stainless steel aisi 304 or aisi 316
-Metal 3mm thick.
-Teflon seals.
-Three piece structure permitting various combinations with female and male threads and butt welding
-Maintenance possibility for replacement of valve seals.
-Light weight for transport and handling purposes.
-Optimum ratio of cost to quality
-Sizes 1/2" gas through 4" diameter passage from 15mm to 80mm.
-Full bore with partial exception of the 4" unit.
-Nominal pressure 10 bar (approval for 16 bar in course).
-Lever stems positioned from the inside.
-Balls die-pressed from stainless steel sheet metal without welding.
-Temperatures up to 100 degrees C.
-Resistance to vacuum up to 10-3 Torr

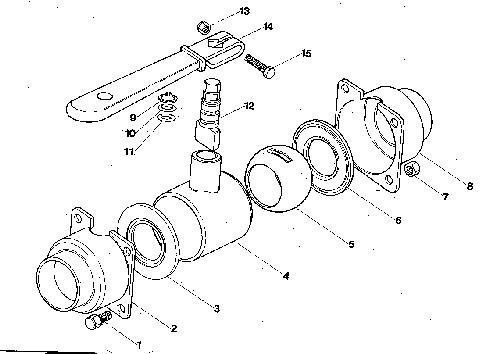

Drawing

Ref.	Description	Materials
01	Screws	Aisi 304
02	Half body	Aisi 304 or 316
03	Seal ring	Teflon(R)
04	Lantern	Aisi 304 or 316
05	Ball	Aisi 304 or 316
06	Seal	Teflon
07	Lock nut	Aisi 304
08	Half body	Aisi 304 or 316
09	Stem stop ring	Steel
10	Stem "O" ring	Viton(R)
11	Stem "O" ring	Viton(R) or teflon(R)-lined wire ring
12	Stem	Aisi 304 or 316
13	Handle nut	Aisi 304
14	Handle	Aisi 304
15	Handle screw	Aisi 304

Dimensions of the IMPRESS valves

Inches	Passage(mm)	Diameter	A	B	C	D	E(FF)	E1(FM-Weld)	F	Weight(kg)
0.50	15	21	77	47	34	145	15	12	---	0.4
0.75	19	26	77	47	34	148	15	12	---	0.4
1.00	24	33	88	57	42	152	17	17	---	0.5
1.25	31	42	111	70	52	188	20	14	---	1.0
1.50	37	48	120	80	57	192	24	18	---	1.3
2.00	48	59	145	113	74	233	26	18	129	2.0
2.50	57	75	180	130	90	358	27	25	150	3.7
3.00	70	88	190	144	98	380	43	32	163	4.5
4.00	80	113	221	175	113	385	41	40	187	6.9

Note:Technical details are indicative only and subject to change without notice.

Prices for the Impress ball valves

All prices are subject to change without notice and to eventual involuntary errors and omissions. Contractual relations between the parties are formed when the supplier has formalised its quotation to the buyer together with delivery and payment conditions and these have been expressly accepted by the buyer. All prices are ex-warehouse Netherlands and exclude VAT and all other taxes.
Prices are expressed in US dollars.

Female-female thread
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1321	14	1561	15
0.75	1323	20	1563	22
1.00	1325	27	1565	29
1.25	1327	35	1567	38
1.50	1329	55	1569	59
2.00	1331	82	1571	88
2.50	1333	128	1573	138
3.00	1335	172	1575	185
4.00	1337	205	1577	218

Male-male thread
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1341	14	1581	15
0.75	1343	20	1583	22
1.00	1345	27	1585	29
1.25	1347	35	1587	38
1.50	1349	55	1589	59
2.00	1351	82	1591	88
2.50	1353	128	1593	138
3.00	1355	172	1595	185
4.00	1357	205	1597	218

Weld-weld
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1361	14	1601	15
0.75	1363	20	1603	22
1.00	1365	27	1605	29
1.25	1367	35	1607	38
1.50	1369	55	1609	59
2.00	1371	82	1611	88
2.50	1373	128	1613	138
3.00	1375	172	1615	185
4.00	1377	205	1617	218

Male-female thread
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1381	14	1621	15
0.75	1383	20	1623	22
1.00	1385	27	1625	29
1.25	1387	35	1627	38
1.50	1389	55	1629	59
2.00	1391	82	1631	88
2.50	1393	128	1633	138
3.00	1395	172	1635	185
4.00	1397	205	1637	218

Weld-female thread
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1401	14	1641	15
0.75	1403	20	1643	22
1.00	1405	27	1645	29
1.25	1407	35	1647	38
1.50	1409	55	1649	59
2.00	1411	82	1651	88
2.50	1413	128	1653	138
3.00	1415	172	1655	185
4.00	1417	205	1657	218

Weld-male thread
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1421	14	1661	15
0.75	1423	20	1663	22
1.00	1425	27	1665	29
1.25	1427	35	1667	38
1.50	1429	55	1669	59
2.00	1431	82	1661	88
2.50	1433	128	1663	138
3.00	1435	172	1665	185
4.00	1437	205	1667	218

Female thread + one flange
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1450	25	1480	27
0.75	1451	32	1481	34
1.00	1452	40	1482	43
1.25	1453	52	1483	56
1.50	1454	72	1484	79
2.00	1455	105	1485	112
2.50	1456	157	1486	171
3.00	1457	204	1487	221
4.00	1458	250	1488	267

Male thread + one flange
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1460	25	1490	27
0.75	1461	32	1491	34
1.00	1462	40	1492	43
1.25	1463	52	1493	56
1.50	1464	72	1494	79
2.00	1465	105	1495	112
2.50	1466	157	1496	171
3.00	1467	204	1497	221
4.00	1468	250	1498	267

Weld + one flange
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1470	25	1500	27
0.75	1471	32	1501	34
1.00	1472	40	1502	43
1.25	1473	52	1503	56
1.50	1474	72	1504	79
2.00	1475	105	1505	112
2.50	1476	157	1506	171
3.00	1477	204	1507	221
4.00	1478	250	1508	267

Two flanges
Size	Aisi 304		Aisi 316
	Code	Us$	Code	Us$
0.50	1510	36	1520	39
0.75	1511	44	1521	47
1.00	1512	52	1522	57
1.25	1513	68	1523	75
1.50	1514	90	1524	99
2.00	1515	127	1525	135
2.50	1516	204	1526	204
3.00	1517	236	1527	258
4.00	1518	285	1528	315

Weights and volumes (applicable to unflanged valves)

Size	Weight grams	Width/height/length	Volume m3 for 100 pieces	Weight kg 100 pieces
0.50	0400	077/077/145	0.086	040
0.75	0400	077/077/148	0.088	040
1.00	0500	088/088/152	0.118	050
1.25	1000	111/111/188	0.232	100
1.50	1300	120/120/192	0.276	130
2.00	2000	145/145/233	0.490	200
2.50	3700	180/180/358	1.160	370
3.00	4500	190/190/380	1.372	450
4.00	6900	221/221/385	1.880	690

Lead time

Time shall not be of the essence of the contract. Goods ordered systematically or according to a firm ordering programme will be purpose held in stock. For goods not in stock allow at least 21 working days for despatch.

WARNING!! European factories are normally closed throughout August and the Christmas/New Year period.

Forwarding agent

If you are not in the European Union, please be sure to nominate your carrier and, where applicable, your customs agent, and detail your routing instructions.

Insurance and passage of liability

Liability passes to the buyer at the moment of loading on board truck at the warehouse in the Netherlands.
Please advise whether insurance is to be arranged. The minimum cost any one insurance certificate is approximately US$65.

Packing

Impress ball valves from 1/2" through 1 1/4" are packed two to a cardboard box measuring 22cm x 11.5cm x 7.5cm. 50 boxes (100 valves) therefore occupy 0.10m3 approx. Handles are supplied loose inside each box. The boxes of two are then put inside a reinforced cardboard box. Wooden crates for ocean freight cost Nlg 50 (Us$26) extra.

Impress ball valves from 1 1/2" and 2" are packed two to a cardboard box measuring 26.5cm x 13.5cm x 9.5cm. 50 boxes (100 valves) therefore occupy 0.17m3 approx. Handles are supplied loose inside each box. The boxes of two are then put inside a reinforced cardboard box. Wooden crates for ocean freight cost Nlg 50 (Us$26) extra.

Impress ball valves from 2 1/2" through 4" are packed two to a cardboard box measuring 40cm x 25cm x 20cm. 50 boxes (100 valves) therefore occupy 1m3 approx. Handles are supplied loose inside each box. The boxes of two are then put inside a reinforced cardboard box. Wooden crates for ocean freight cost Us$26 extra.

Discount structures

0000-050 units: net
051-100 units: 2.5%
101-250 units: 5%
251-500 units: 7.5%
Over 500 units: 10%

Payment

Payments outside of the European Union must be adequately covered by way of irrevocable letter of credit issued by a leading bank or made in advance or otherwise to be agreed.
Within the European Union, payments against documents will be accepted for orders up to a value of US$10.000.
Within the European Union, payment at 30 days net with disount 2% for payment within 10 days may, subject always to bank information, be negotiated for clients with a firm ordering programme.

(Viton(R) and teflon(R) are registered trademarks of DuPont Dow Elastomers).
