Edition 04 : 01 January, 2002

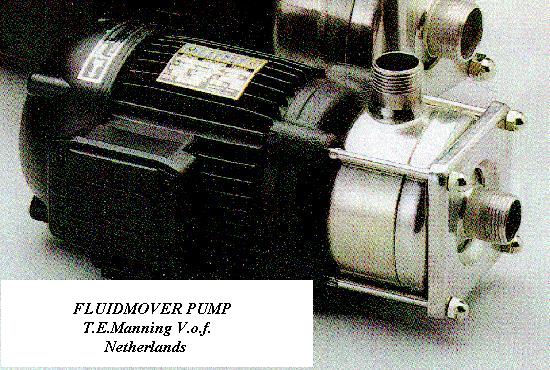

Photograph of the Fluidmover pumps

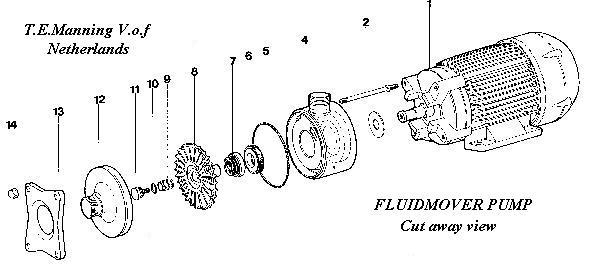

Drawing of the Fluidmover pumps

DRAWING

Part	Description	Material
01	(Motor)
02	Tie-rods	Stainless steel aisi 304
03	Compensation ring	Stainless steel aisi 304
04	Pump body	Inox aisi 304 or 316
05	Body seal ring	Buna or viton(R) (
06/07	Seal	Graphite, ceramic, with buna or viton(R) or teflon(R)
08	Impeller	Inox aisi316
09	Star ring	Steel
10	Screw o-ring	Buna or viton(R)
11	Impeller screw	Inox 316
12	Pump cover	Inox aisi 304 or 316
13	Flange	inox aisi 3o4
14	Flange lock nuts)	Stainless steel aisi 304

(Viton(R) and Teflon(R) are registered trademarks of DuPont Dow Elastomers)

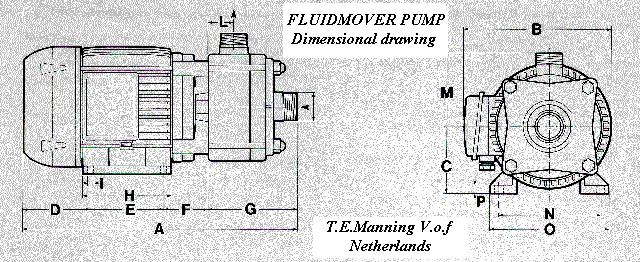

Dimensional drawing of Fluidmover pumps

DIMENSIONAL DRAWING

Model	HP	RPM	A	B	C	D	E	F	G	H	I	L	M	N	O	P
Fluidmover1	0.3	1400	320	182	71	75	90	50	105	101	8	27	94	112	137	10
Fluidmover1	0.5	1400	320	188	71	75	90	50	105	101	8	27	94	112	137	10
Fluidmover1	0.5	2800	320	182	71	75	90	50	105	101	8	27	94	112	137	10
Fluidmover1	0.75	2800	320	188	71	75	90	50	105	101	8	27	94	112	137	10
Fluidmover2	0.75	1400	360	208	79	87	100	55	118	122	12	30	101	125	155	10
Fluidmover2	2.0	2800	370	225	94	90	100	62	118	125	13	30	101	140	175	12
Fluidmover2	2.5	2800	395	225	94	90	125	62	118	150	14	30	101	140	172	13
Fluidmover3	2.5	1400	445	255	97	97	140	73	135	170	16	41	113	160	198	13
Fluidmover3	4.5	2800	478	280	112	108	140	95	135	172	17	41	113	190	227	17
Fluidmover3	6.0	2800	480	280	112	110	140	95	135	172	17	41	113	190	227	17
