Edition 06 : 01 January, 2004

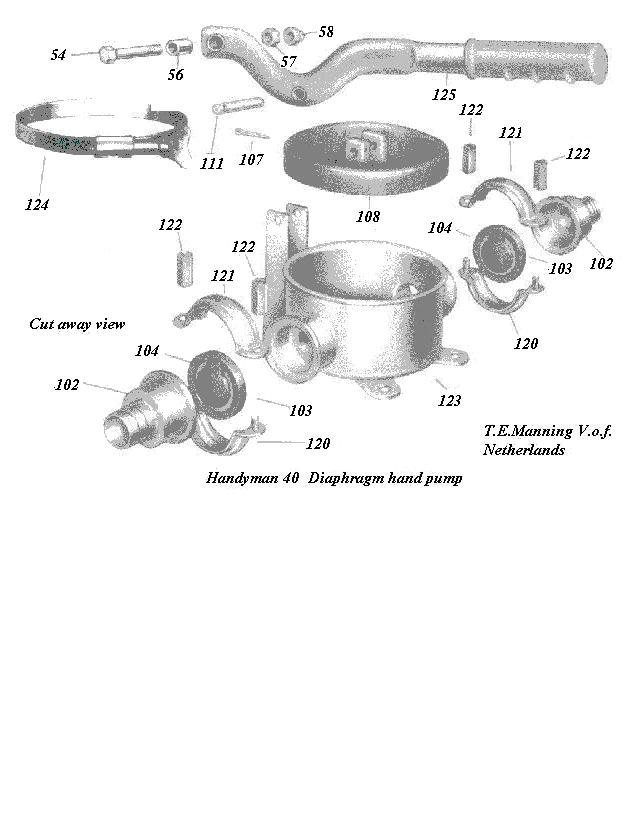

DRAWING OF THE HANDYMAN 40 PUMPS

DRAWING

Part-codeRefDescriptionPiecesMaterials used
7050054Pivot screws1Stainless steel Aisi 304
7051056Pivot sleeve1Bronze
7089125Lever1Stainless steel aisi 304
7089G125Plastic handle grip1Plastic
315203Pivot1Stainless steel aisi 304
315304Diaphragm NEOPRENE1Neoprene
315404Diaphragm PERBUNAN1Perbunan (for fuels)
315605Long screw1Stainless steel Aisi 304
315706Nuts2Bronze
315807Split clamp ring1Stainless steel Aisi 304
316208Pump body1Stainless steel Aisi 304
316509Flapper valve NEOPRENE2Neoprene
316809Flapper valve PERBUNAN2Perbunan (for fuels)
317010Valve supports2Stainless steel Aisi 304
317211Clamps male part2Stainless steel Aisi 304
3172F11Clamps female part2Stainless steel Aisi 304
3172N11Wing nuts for clamps4Bronze
317412Pipe couplings 40mm nylon2Nylon
3174S12Pipe couplings 40mm steel2Stainless steel Aisi 304
3174T12Couplings 40mm male gas2Stainless steel Aisi 304
317512Pipe couplings 50mm nylon2Nylon
3175S12Pipe couplings 40mm steel2Stainless steel Aisi 304
3175T12Couplings 50mm male gas2Stainless steel Aisi 304
317612Teflon rings for coulings2Teflon
317713Trolley mount1Galvanised iron
3177W13Wheel set for trolley mount2
