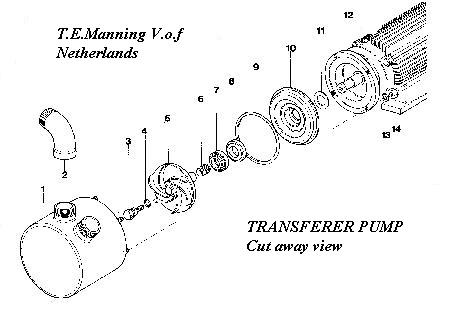

| Part | Description | Material |
|---|---|---|
| 01 | Body suction end | inox aisi 304 or aisi 316 |
| 02 | Outlet curve | inox aisi 304 or aisi 316 |
| 03 | Impeller screw | Inox |
| 04 | Screw o-ring | Buna or viton(R) |
| 05 | Impeller | Inox aisi316 |
| 06 | Star ring | Steel |
| 07/08 | Seal | Graphite, ceramic, with buna or viton(R) or teflon(R) |
| 09 | Body seal ring | Buna or viton(R) |
| 10 | Back plate | Inox aisi 304 or 316 |
| 11 | Spacer ring | Stainless steel |
| 12 | (Motor) | |
| 13 | Lock nut washers) | Steel |
| 14 | Flange lock nuts) | Brass |
(Viton(R) and Teflon(R) are registered trademarks of DuPont Dow Elastomers).

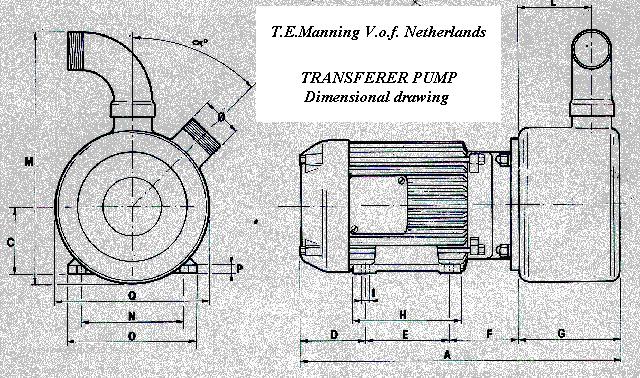

| Model | HP | RPM | A | C | D | E | F | G | H | I | L | M | N | O | P | Q | & | diam |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transferer 240 | 4 | 2800 | 481 | 100 | 98 | 140 | 98 | 145 | 170 | 16 | 104 | 400 | 160 | 200 | 13 | 240 | 45 | 2" |
| Transferer 480 | 5 | 2800 | 486 | 100 | 98 | 140 | 98 | 150 | 170 | 16 | 104 | 400 | 160 | 200 | 13 | 240 | 45 | 2" |
| Transferer 480 | 7.5 | 2800 | 515 | 100 | 120 | 140 | 110 | 150 | 180 | 18 | 104 | 400 | 185 | 220 | 14 | 240 | 45 | 2" |
