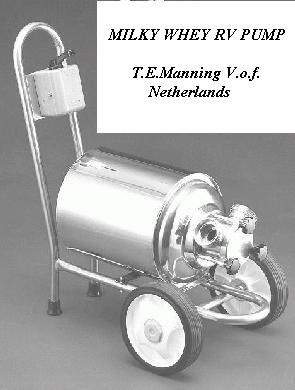

Photograph of the Milky Whey RV rotary vane pumps

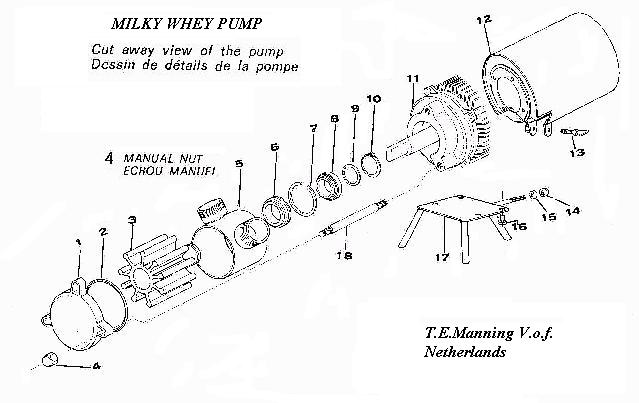

Drawing of the Milky Whey RV pumps

DRAWING

LIST OF PARTS OF THE MILKY WHEY RV 60 PUMP

PartDescriptionMaterials used
01Front coverStainless steel aisi 316
02Body sealNeoprene
03ImpellerNeoprene
04Manual nuts
05Pump bodyStainless steel aisi 316, with gas thread
05APump bodyStainless steel aisi 316, with DIN threads
05BPump bodyStainless steel aisi 316, with RJT threads
05CPump bodyStainless steel aisi 316, with SMS threads
06Seal, fixed partStainless steel 26/50/10 with EPDM ring
07Elastic ring
08Seal, rotating partStainless steel with graphite and EPDM seal ring
09SpacerStainless steel aisi 316
10Seeger ringStainless steel aisi 304
11Motor1400 rpm 0.75 hp single phase
11AMotor1400 rpm 1 HP three phase
11BMotor900 rpm 0.75 HP three phase
11CMotor700 rpm 0.4HP three phase
12Motor cover (shroud) with tripodAisi 304
13Manual nutAisi 304
14CounternutsAisi 304
15Base nutAisi 304
16Base screwAisi 304
17Pump baseAisi 304
18Tie-rodsAisi 304

LIST OF PARTS OF THE MILKY WHEY RV 90 PUMP

PartDescriptionMaterials used
01Front coverStainless steel aisi 316
02Body sealNeoprene
03ImpellerNeoprene
04Manual nuts
05Pump bodyStainless steel aisi 316, with gas thread
05APump bodyStainless steel aisi 316, with DIN threads
05BPump bodyStainless steel aisi 316, with RJT threads
05CPump bodyStainless steel aisi 316, with SMS threads
06Seal, fixed part 33/57/10Stainless steel 26/50/10 with EPDM ring
07Elastic ring
08Seal, rotating partStainless steel with graphite and EPDM seal ring
09SpacerStainless steel aisi 316
10Seeger ringStainless steel aisi 304
11Motor1400 rpm 2.00 hp single phase
11AMotor1400 rpm 2.5HP three phase
11BMotor900 rpm 1.5 HP three phase
11CMotor700 rpm 1.00HP three phase
12Motor cover (shroud) with tripodAisi 304
13Manual nutAisi 304
14CounternutsAisi 304
15Base nutAisi 304
16Base screwAisi 304
17Pump baseAisi 304
18Tie-rodsAisi 304

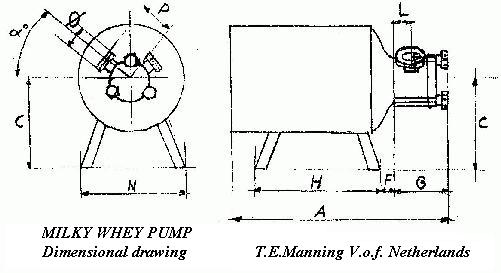

Dimensional drawing of Milky Whey RV pumps with motor cover and tripod

DIMENSIONAL DRAWING

RV60RV90
A430A465
B250B250
C180C190
F040F045
G080G100
H240H240
L025L033
N240N240
P072P085
DiamDin 32DiamDin 40
Diam57.5mmDiam65mm
&38deg&38deg

OPERATING LIMITS

Pressure : 6 bar
Fluid speed: 12 meters/second
Temperature : -30 degrees C to 90 degrees C

SEAL PARTS AND MATERIALS

Part 01Rotating part-seal supportStainless steel CrNiMo
Part 02Rotating part-springStainless steel CrNiMo
Part 03Rotating part-stop ringStainless steel CrNiMo
Part 04Rotating part-sealEPDM
Part 05Rotating part-external casingStainlesS steel CrNiMo
Part 06Rotating part-contact ringGraphite
Part 07Fixed part-counterfaceStainless steel
Part 08Fixed part-seal ringEPDM

SEAL DIMENSIONS

Codes (refer to the above drawing)

d1=shaft diameter
d3=external diameter of seal
i3=height of rotating part of seal
d4=seal chamber diameter
d7=diameter of fixed part of seal
i4=height of fixed part of seal
d6=diameter of shaft passage
i1=total height of seal

Modeld1d3i3d4d7i4d6i1
RV601842153842071624
RV902550154650102426
