FLOWMAN

ADVANCED PUMP TECHNOLOGIES

Edition 03 : 01 January, 2002

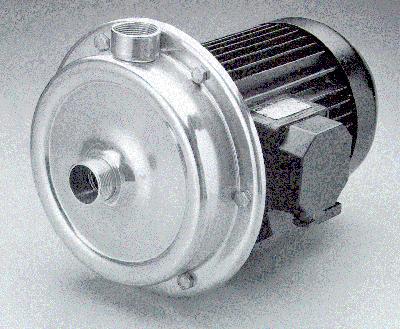

Photograph of the Common Cents pumps

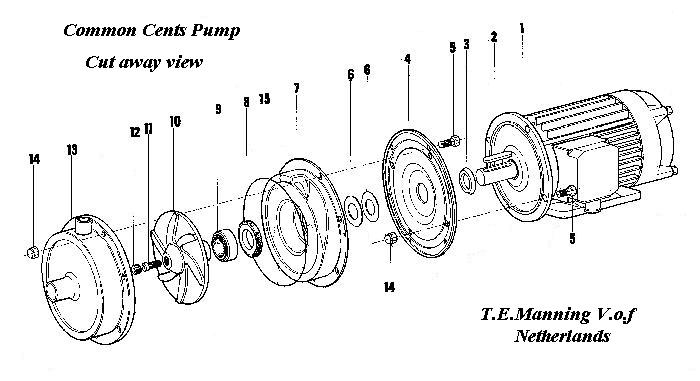

Drawing of the Common Cents pumps showing an open impeller unit.

Drawing

PartDescriptionMaterial
01Motor
02Shaft keySteel
03Shaft seal ring
04BackplateInox 316
05ScrewsStainless steel aisi 304
06Distancing ringInox 316
07DiffuserStainless steel aisi 316
08Fixed part of sealStainless steel aisi 316, ceramic
09Rotating part of sealStainless steel, graphite, viton(R) or teflon(R)
10ImpellerStainless steel aisi 316
11Impeller set screwStainless steel aisi 316
12Impeller lockStainless steel aisi 316
13Pump bodyAisi 316
14Lock nutStainless steel aisi 304
15Body "O" ringViton(R)

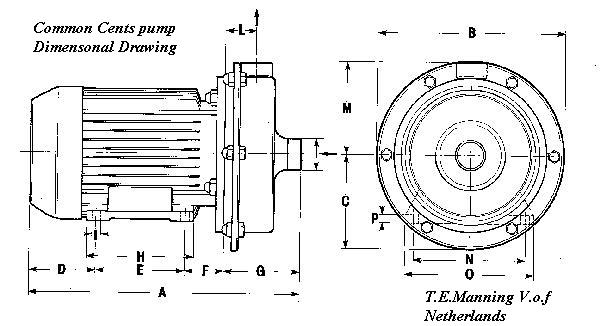

Dimensional drawing (in millimeters) of the Common Cents pumps

DIMENSIONAL DRAWING

HP MotorABCDEFGHILMNOP
236031015510110056103125094815514020013
338531015510112556103150094815514020013
441631015511014063103166114815516020013
5.541631015511014063103166114815516020013
7.543531015512214070103175124815519020013
10505310155125180125103220124815522026013

(Viton(R) and Teflon(R) are registered trademarks of DuPont Dow Elastomers)
