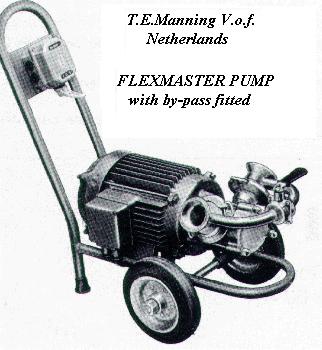

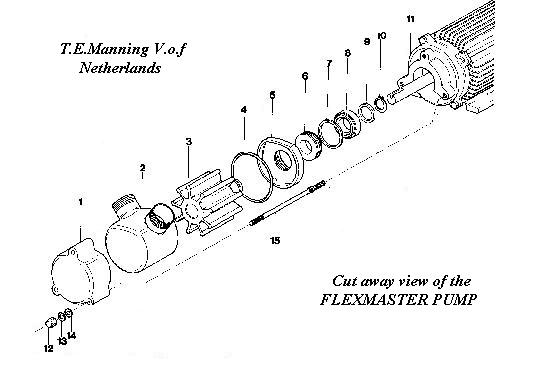

| Part | Description | Materials used |
|---|---|---|
| 01 | Flange | Stainless steel aisi 316 |
| 02 | Pump body | Stainless steel aisi 304 |
| 03 | Impeller | Neoprene |
| 04 | Body seal ring | Buna |
| 05 | Body cap | Stainless steel aisi 316, with gas thread |
| 06 | Seal, fixed part | Inox and buna |
| 07 | Elastic ring | Steel |
| 08 | Seal, rotating part | Stainless steel with graphite and buna seal ring |
| 09 | Spacer | Stainless steel aisi 316 |
| 10 | Seeger ring | Stainless steel aisi 304 |
| 11 | Motor | |
| 12 | Lock nuts | Brass |
| 13 | Washers | Stainless steel aisi 304 |
| 14 | Washers | Aisi 304 |
| 15 | Tie-rods | Aisi 304 |

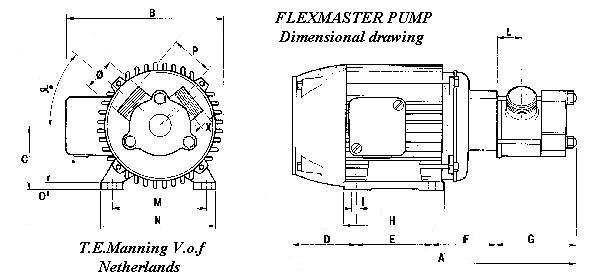

| Flexmaster 60 | Flexmaster 90 | Flexmaster 120 | |||
|---|---|---|---|---|---|
| A | 367 | A | 445 | A | 629 |
| Flexmaster 120 with 6HP motor | A | 592 | |||
| B | 208 | B | 256 | B | 337 |
| C | 80 | C | 99 | C | 124 |
| Flexmaster 120 with 6HP motor | C | 127 | |||
| D | 83 | D | 98 | D | 147 |
| E | 100 | E | 140 | E | 180 |
| Flexmaster 120 with 6HP motor | E | 143 | |||
| F | 84 | F | 91 | F | 145 |
| G | 100 | G | 116 | G | 157 |
| H | 122 | H | 170 | H | 225 |
| Flexmaster 120 with 6HP motor | H | 185 | |||
| I | 12 | I | 17 | I | 20 |
| Flexmaster 120 with 6HP motor | I | 22 | |||
| L | 30 | L | 035 | L | 54 |
| M | 125 | M | 160 | M | 218 |
| N | 155 | N | 198 | N | 256 |
| O | 10 | O | 14 | O | 18 |
| P | 56 | P | 71 | P | 92 |
| X | 13 | X | 15 | X | 17 |
| & | 41deg | & | 33deg | & | 40deg |
| Diam | 1 1/4" | Diam | 1 1/2" | Diam | 2" |
Pressure : 6 bar
Fluid speed: 12 meters/second
Temperature : -30 degrees C to 90 degrees C
| Part 01 | Rotating part-seal support | Stainless steel CrNiMo |
| Part 02 | Rotating part-spring | Stainless steel CrNiMo |
| Part 03 | Rotating part-stop ring | Stainless steel CrNiMo |
| Part 04 | Rotating part-seal | Buna |
| Part 05 | Rotating part-external casing | StainlesS steel CrNiMo |
| Part 06 | Rotating part-contact ring | Graphite |
| Part 07 | Fixed part-counterface | Stainless steel |
| Part 08 | Fixed part-seal ring | Buna |
| d1=shaft diameter |
| d3=external diameter of seal |
| i3=height of rotating part of seal |
| d4=seal chamber diameter |
| d7=diameter of fixed part of seal |
| i4=height of fixed part of seal |
| d6=diameter of shaft passage |
| i1=total height of seal |
| Model | d1 | d3 | i3 | d4 | d7 | i4 | d6 | i1 |
|---|---|---|---|---|---|---|---|---|
| G60 | 18 | 42 | 15 | 38 | 42 | 8 | 17 | 25 |
| G90 | 25 | 50 | 15 | 46 | 50 | 10 | 25 | 25 |
| G120 | 40 | 68 | 20 | 64 | 68 | 12 | 37 | 34 |
