FLOWMAN

ADVANCED PUMP TECHNOLOGIES

Edition 03 : 01 March, 2002

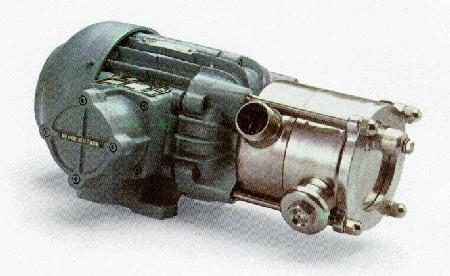

Photograph of the Moduflow pumps

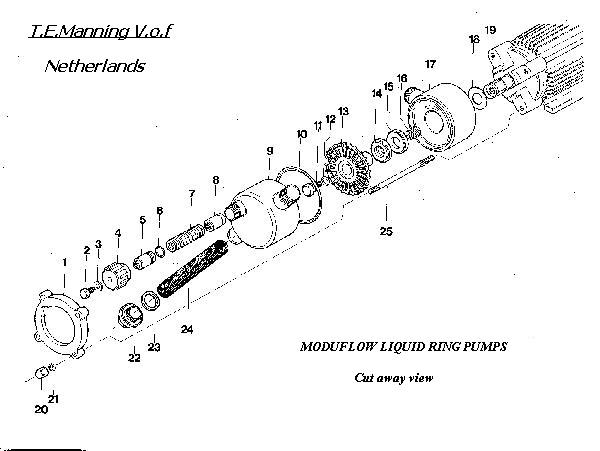

Drawing of the Moduflow pumps

DRAWING

PartDescriptionMaterial
01Flangeinox aisi 304
02By-pass screwinox aisi 304
03By-pass washerinox aisi 304
04By-pass knobNylon or inox aisi 304
05By-pass pistonNylon or inox aisi 3o4
06Piston "O" ringbuna or vito
07Springinox aisi 304
08Valveinox aisi 304
09Body suction endinox aisi 304 or aisi 316
10Body seal ringBuna or viton(R)
11Impeller screwInox 316
12Screw o-ringBuna or viton(R)
13ImpellerInox aisi316
14/15SealGraphite, ceramic, with buna or viton(R) or teflon(R)
16Star ringSteel
17Pump body outlet sideInox aisi 304 or 316
18Compensation ringStainless steel aisi 304 or 316
19(Motor)
20Flange lock nuts)Brass
21Lock nut washers)Steel
22Filter capInox aisi 304 or 316
23Filter sealBuna or viton(R) or teflon(R)
24FilterInox aisi 304 or 316
25Tie-rodsStainless steel aisi 304

(Viton(R) and Teflon(R) are registered trademarks of DuPont Elastomers).

Dimensional drawing of Moduflow pumps

DIMENSIONAL DRAWING

ModelHPRPMABCDEFGHILMNOP&diam
Moduflow 1100.31400345182727590501301018275811213710251"
Moduflow 1100.51400345188727590501301018275811213710251"
Moduflow 1100.52800345182727590501301018275811213710251"
Moduflow 1100.752800345188727590501301018275811213710251"
Moduflow 1300.75140040020880871005515812212307412515510251 1/4"
Moduflow 1302.0280041022590901006215812513307414017512251 1/4"
Moduflow 1302.5280043522590901256215815014307414017213251 1/4"
Moduflow 1502.51400485255100971407317517016417116019813251 1/2"
Moduflow 1504.528005182801121081409517517217417119022717251 1/2"
Moduflow 1506.028005202801121101409517517217417119022717251 1/2"
