MILKY WHEY SERIES

Description of theMilky Whey sanitary pumps

A range of open impeller sanitary pumps made from die-pressed stainless steel aisi 316 with capacities up to 54m3 per hour and heads up to 35m sold either as wet end alone; pump and motor; pump and motor with motor cover (shroud) and tripod; pump and motor with motor cover (shroud) and stainless steel trolley mount.

The Milky Whey pumps are designed and manufactured to offer maximum hygiene and to avoid risk of contamination of the liquid pumped. They feature :
*Careful internal and external polishing to ensure maximum hygiene, elimination of residues and deposits, and enhanced resistance to corrosion.
*Easy and rapid opening without tools for complete inspection and maintenance.
*Availability of stainless steel motor covers (shrouds), tripods, and trolleys.
*Inlets and outlets male threaded to DIN standards 1181, or with gas threads, or with flanges, or on request and subject to additional payment RJT or SMS couplings
*Motors to international IEC standards with IP55 protection suitable for continuous duty.
*Entirely in aisi 316 die-pressed stainless steel.
*Sanitary alumina (aluminium oxide) mechanical rotative seals with EPDM rubbers
*Temperature -10 degrees C to +90 degrees centigrade
*Maximum system pressure 5 bar.

Applications

Milky Whey pumps are for use with non-aggressive liquids and in particular:

ALIMENTARY LIQUIDS

Wine, grapes without stalks, fruit juices, tomato sauce, edible oils, beer, butter and melted cheese, cream, milk (including milking machines), condensed milk, eggs, honey, yoghurt, jam, liquid sugar, glucose and alimentary liquids generally.

PHARMACEUTICAL LIQUIDS

Wax, liquid soaps, creams, syrups, shampoos etc

LIQUIDS IN THE LIGHT CHEMICALS INDUSTRIES

Starch, water based glues, emulsions, glycerine, glycols, latex, animal and vegetable fats.

Do NOT use Milky Whey pumps for:

Liquids which are generally aggressive and dangerous to health and to persons animals and things in general, such by way of example as acids, solvents, naphtalene, chloric acid, hydrochloric acid in any concentration, hydrofluoric acid, muriatic acid, sulphuric acid, molten antimony and aluminium, ammonia, sulphur chloride.

Milky Whey pumps must not be used with inflammable liquids or in environments where there is risk of explosion.

SPECIFICATIONS

Capacity

All readings are with water at 15 degrees centigrade, specific weight 1000 F/m3 and atmospheric pressure equal to 750mm Hg and are accurate to +/- 5%

Milky Whey pumps with 4 pole 1400 rpm motors

MILKY WHEY 200 0.35HP 1400 RPM INLET AND OUTLET 25MM (1") SINGLE OR THREE PHASE

Head in meters	0	1	2	3	3.5
Liters/minute	110	090	075	030	000

MILKY WHEY 300 1.5HP 1400 RPM INLET 40MM (1 1/2") OUTLET 25MM (1") SINGLE OR THREE PHASE

Head in meters	0	2	4	5	6
Liters/minute	240	210	150	110	000

MILKY WHEY 500 3.0HP 1400 RPM INLET 50MM (2") OUTLET 40MM (1 1/2") THREE PHASE ONLY

Head in meters	0	2	4	6	8	10	11	12
Liters/minute	720	710	640	570	500	380	290	000

MILKY WHEY 1000 3.0HP 1400 RPM INLET 65MM (2 1/2") OUTLET 65MM (2 1/2") THREE PHASE ONLY

Head in meters	0	2	4	6	8	10	12	13
Liters/minute	900	850	800	600	410	240	100	000

Milky Whey pumps with 2 pole 2800 rpm motors

MILKY WHEY 200 1HP 2800 RPM INLET AND OUTLET 25MM (1") SINGLE OR THREE PHASE

Head in meters	5	8	10	12	15	16
Liters/minute	200	175	150	135	060	000

MILKY WHEY 300 2.5HP 2800 RPM INLET 40MM (1 1/2") OUTLET 25MM (1") SINGLE OR THREE PHASE

Head in meters	5	10	15	20	25	26
Liters/minute	360	310	260	200	080	000

MILKY WHEY 500 5.5HP 2800 RPM INLET 50MM (2") OUTLET 40MM (1 1/2") THREE PHASE ONLY

Head in meters	5	10	15	20	25	30	33
Liters/minute	700	600	500	400	280	080	000

MILKY WHEY 1000 7.5HP 2800 RPM INLET 65MM (2 1/2") OUTLET 65MM (2 1/2") THREE PHASE ONLY

Head in meters	5	10	15	20	25	30	35	38
Liters/minute	800	680	600	500	340	170	060	000

Gross dimensions in mm for units complete with motor cover(shroud) and tripod

	Milky Whey 200	Milky Whey 300	Milky Whey 500	Milky Whey 1000
Inlet to rear of motor cover	350	410	500	520
Height of motor cover	200	250	285	330
Height from tripod base	260	315	340	375
Height base tripod to center inlet	165	190	195	210
Center line inlet to center line outlet	070	080	095	095

Motor specifications

Motors are mostly standard B3/B5 multitension multicycle.

1400 RPM MOTORS

MILKY WHEY 200 1400 RPM

_KW__RPM__Voltage__Hertz__Amperes___Cos@__Frame__Flange__Shaft__Standard
_0.25_1400__220/380___50____1.5/0.85____0.67____71____71-D____14mm____yes
_0.25_1410__240/420___50____1.5/0.90____0.69
_0.31_1620__220/380___60____1.5/0.85____0.80
_0.31_1650__240/420___60____1.5/0.85____0.74
_0.31_1670__265/460___60____1.5/0.85____0.67

MILKY WHEY 300 1400 RPM

_KW__RPM__Voltage__Hertz__Amperes___Cos@__Frame__Flange__Shaft__Standard
_1.10_1400__220/380___50____4.8/2.80___0.76_____90___90-D___24mm___yes
_1.10_1410__240/420___50____5.0/2.90___0.67
_1.30_1620__220/380___60____5.3/3.10___0.83
_1.30_1650__240/420___60____5.0/2.90___0.80
_1.30_1680__265/460___60____4.8/2.80___0.70

MILKY WHEY 500 1400 RPM AND MILKY WHEY 1000 RPM

_KW__RPM__Voltage__Hertz__Amperes___Cos@__Frame__Flange__Shaft__Standard
_2.20_1410__220/380___50____8.5/4.90___0.80____100___100-D__28mm___yes
_2.20_1430__240/420___50____8.6/5.00___0.71
_2.60_1640__220/380___60___10.2/5.90___0.85
_2.60_1660__240/420___60____9.0/5.20___0.83
_2.60_1700__265/460___60____8.5/4.90___0.75

2800 RPM MOTORS

MILKY WHEY 200 2800 RPM

_KW__RPM__Voltage__Hertz__Amperes___Cos@__Frame__Flange__Shaft__Standard
_0.75_2800__220/380___50____3.1/1.80___0.84____80_____71-D__14mm______no
_0.75_2860__240/420___50____3.2/1.90___0.75
_0.90_3200__220/380___60____3.6/2.10___0.88
_0.90_3300__240/420___60____3.2/1.90___0.86
_0.90_3350__265/460___60____3.1/1.80___0.82

MILKY WHEY 300 2800 RPM

_KW__RPM__Voltage__Hertz__Amperes___Cos@__Frame__Flange__Shaft__Standard
_2.20_2860__220/380___50____9.0/5.20___0.80____90_____90-D__24mm______yes
_2.20_2880__240/420___50___10.0/5.90___0.66
_2.70_3400__220/380___60___10.0/5.90___0.88
_2.70_3440__240/420___60____9.0/5.20___0.86
_2.70_3480__265/460___60____9.0/5.20___0.80

MILKY WHEY 500 2800 RPM

_KW__RPM__Voltage__Hertz__Amperes___Cos@__Frame__Flange__Shaft__Standard
_4.00_2920__220/380___50___15.0/8.70___0.83____100____112-D_28mm_____yes
_4.00_2930__240/420___50___15.7/9.10___0.73
_4.80_3430__220/380___60___16.4/9.50___0.73
_4.80_3440__240/420___60___15.6/9.00___0.87
_4.80_3460__265/460___60___15.0/8.70___0.81

MILKY WHEY 1000 2800 RPM

_KW__RPM__Voltage__Hertz__Amperes___Cos@__Frame__Flange__Shaft__Standard
_5.50_2880__380/660___50___11.8/6.80___0.83____132____100-D_28mm_____no
_5.50_2900__420/726___50___12.1/6.90___0.75
_6.60_3380__380/660___60___13.4/7.70___0.88
_6.60_3410__420/726___60___12.3/7.10___0.86
_6.60_3440__460/795___60___11.8/6.30___0.81

Acoustic pressure (noise) in decibels

The maximum noise level with open inlet is 84.1 dBA (with the Milky Whey 1000 unit)
The maximum noise level under load is 73.2 dBA (with the Milky Whey 1000 unit)

Seals

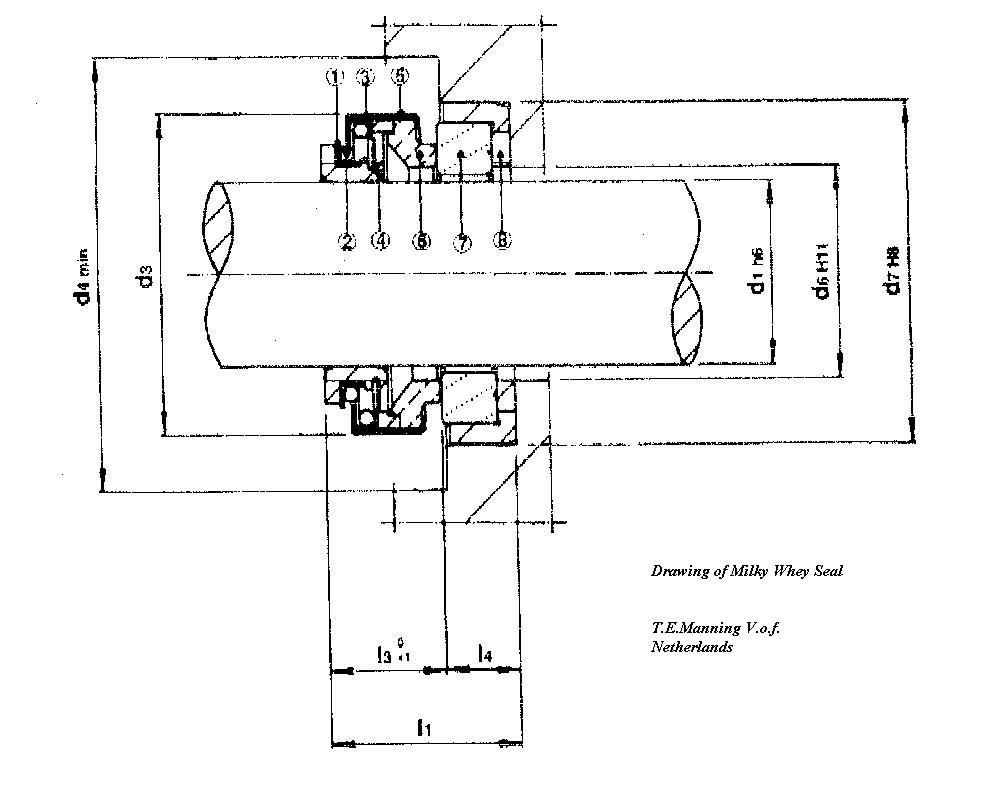

DRAWING

OPERATING LIMITS

Pressure : 6 bar
Fluid speed: 12 meters/second
Temperature : -30 degrees C to 90 degrees C

SEAL PARTS AND MATERIALS

Part 01	Rotating part-seal support	stainless steel CrNiMo
Part 02	Rotating part-spring	stainless steel CrNiMo
Part 03	Rotating part-stop ring	stainless steel CrNiMo
Part 04	Rotating part-seal	EPDM
Part 05	Rotating part-external casing	stainless steel CrNiMo
Part 06	Rotating part-contact ring	graphite
Part 07	Fixed part-counterface	alumina (aluminium oxide)
Part 08	Fixed part-seal	97EPDM

SEAL DIMENSIONS

Codes (refer to the above drawing)

d1	Shaft diameter
d3	External diameter of seal
i3	Height of rotating part of seal
d4	Seal chamber diameter
d7	Diameter of fixed part of seal
i4	Height of fixed part of seal
d6	Diameter of shaft passage
i1	Total height of seal

Model	d1	d3	i3	d4	d7	i4	d6	i1
Milky Whey 200	25	47	14	60	50	10	27	24
Milky Whey 300	32	54	15	68	57	10	35	25
Milky Whey 500	40	65	18	72	68	12	43	30
Milky Whey 1000	40	65	18	72	68	12	43	30
